LM Guide Peripheral Facilities
Rail Straightening Machine
Main Features
- 3Phase Motor, 220V or 380V, 50Hz or 60Hz.
- Relays Control Way in Electric panel box.

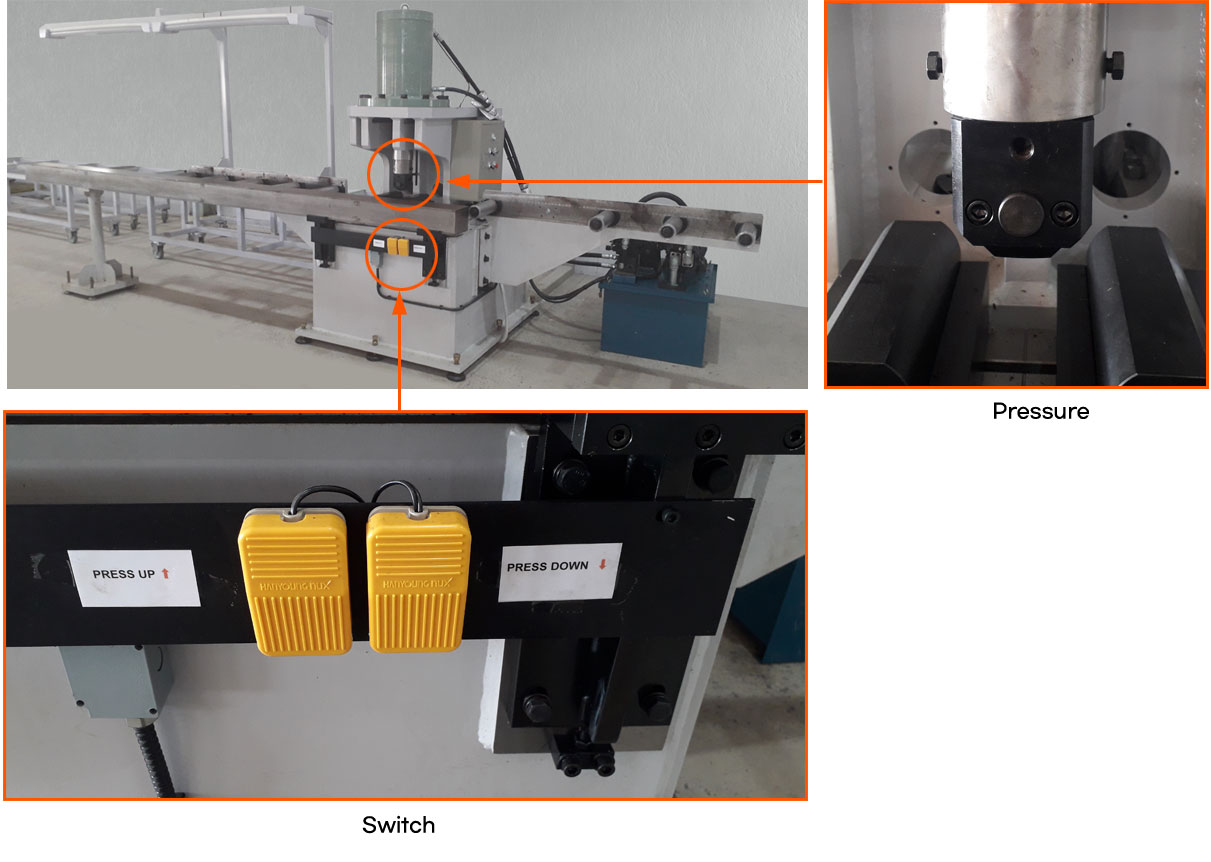

- Foot Switch Way.
- Up-Down travel speed 0.5 mm/s.
- Hydraulic Oil : ISO VG 46 or 68.
- Heat Treatment Hard Chrome Plating Ø80 Rollers.
- Surface Plate Hardness HrC 50~55
Hydraulic Tank
Specifications
| Model Number | #15,20,25,30,35,45,55,65 |
|---|---|
| Material Length | 4300mm |
| Press Cylinder | Ø300 x Ø130 x 250st |
| Press Pressure | 140Kgf/c㎠, Max 70ton |
| Hydraulic Motor | 7.5Kw |
| Hydraulic Tank | 200Liter |
| Power Required | 8Kw |
| Machine Weight | 5,800Kg |
| Machine Size | 5530 x 1700 x 2100H |
Dimension
