Cutting Machines
Coupling Blank Circular Saw Machine
Main Features
- Touch Screen 10.2 Inch.
- 3 Phase Motor, 220V or 380V, 50 or 60Hz.
- Mist oiling & cutting in both sides of the Saw and Tooth front, Cycle time 65 seconds.

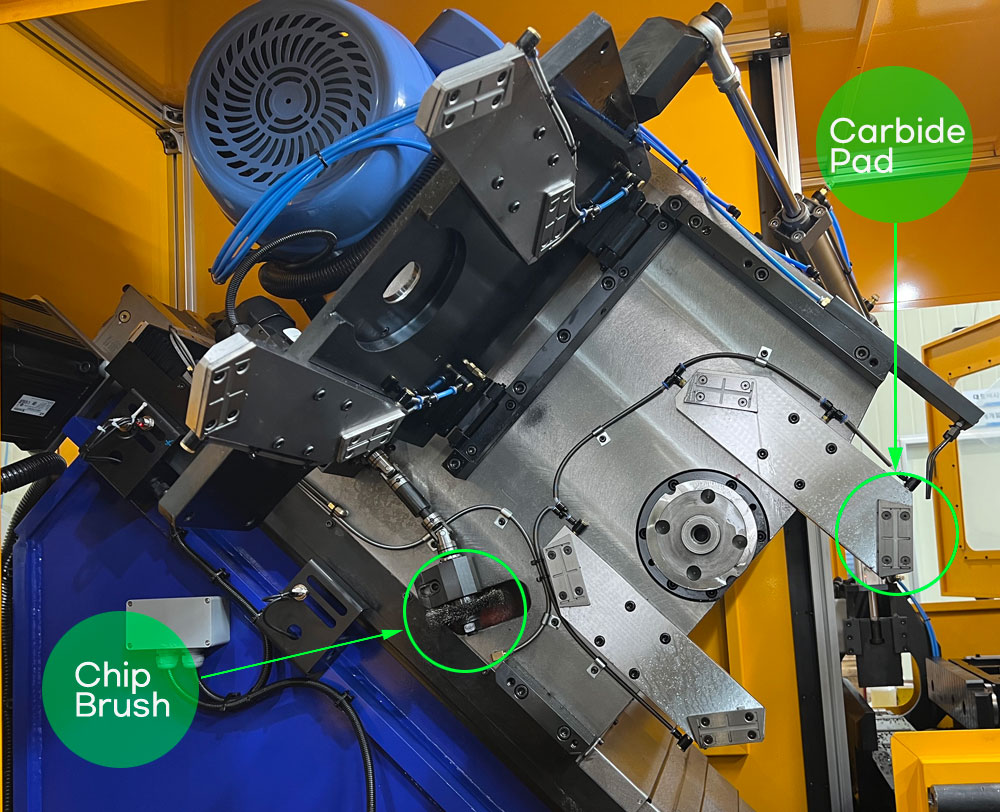

- Installation brush for removing Impurities of Teeth.
- Being Supported by carbide pads on both sides of the saw to prevent the saw from bending --- > Increase of Saw’s life.
- Connecting the gear box & 3phase motor with 5v pulley, belt. And Minimizing back lash with a powder brake.
- Reducing ball screw load by connecting 45-degree inclined feeding table & hydraulic cylinder weight chain.
- Servo motor table transfer with X, Y axis linear guide & ball screw structure.
- Front-to-back and 45-degree hydraulic clamping structure prevents the material from shaking.
Natural Cooled Type Powder Brake
Main Body & Out conveyor & Laser Marking Tool
Machining Video
Specifications
| Pipe Size | Ø90 ~ Ø160 |
|---|---|
| Material Length | Max. 12000mm |
| Table Feed Stroke X axis | 700mm |
| Table Feed Stroke Y axis | 358mm |
| Circular Saw | Ø560 x t3.0 x Ø50 x Z80 |
| Hydraulic Tank | 60 Liter |
| Mist Oil Pump | 2.7 Liter Tank & 2 Pump |
| Power Required | 25Kw |
| Machine Weight | 8ton |
| Machine Size | 4400 x 2300 x 2600H (Except Input Conveyor) |
Dimension
